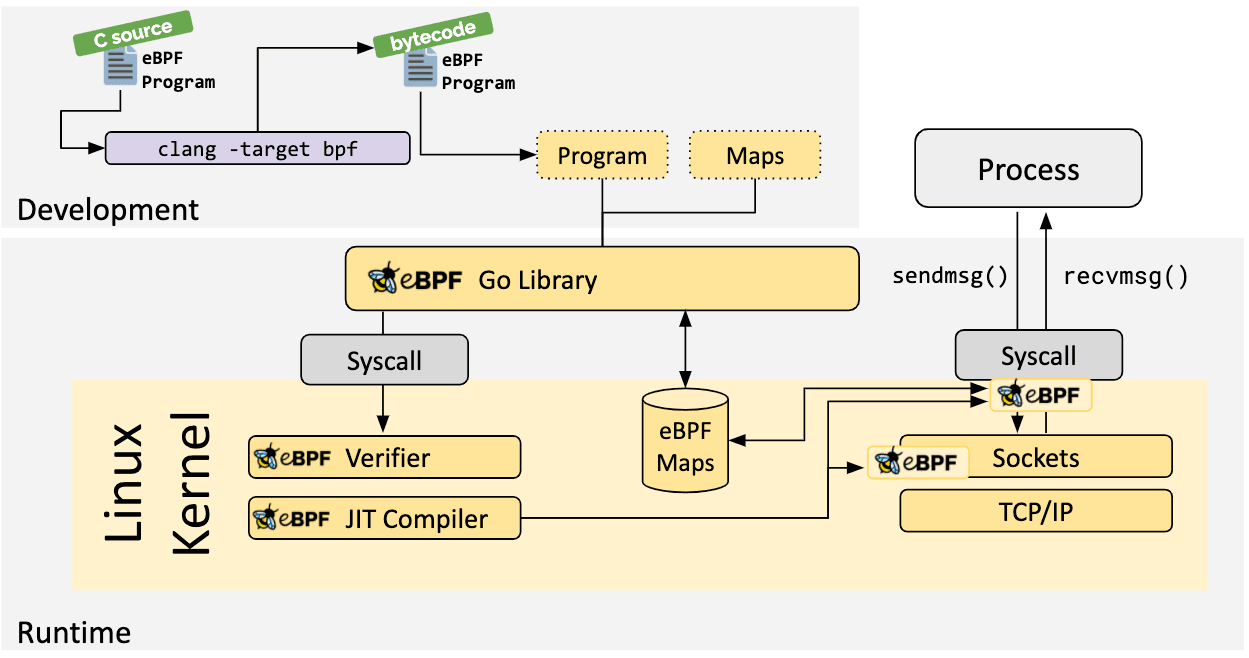

In Part 1, we had a look at creating the eBPF program in C, which we will need to compile into eBPF bytecode and inject into our Go application

https://ebpf.io/static/1a1bb6f1e64b1ad5597f57dc17cf1350/6515f/go.png

Rather than copy/paste the exact instructions, the ebpf-go documentation outlines the process in the toolchain to create the scaffolding for the Go application.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
package main

import (
    "log"
    "net"
    "os"
    "os/signal"
    "time"

    "github.com/cilium/ebpf/link"
    "github.com/cilium/ebpf/rlimit"
)

func main() {
    // Remove resource limits for kernels <5.11.
    if err := rlimit.RemoveMemlock(); err != nil {
        log.Fatal("Removing memlock:", err)
    }

    // Load the compiled eBPF ELF and load it into the kernel.
    var objs counterObjects
    if err := loadCounterObjects(&objs, nil); err != nil {
        log.Fatal("Loading eBPF objects:", err)
    }
    defer objs.Close()

    ifname := "eth0" // Change this to an interface on your machine.
    iface, err := net.InterfaceByName(ifname)
    if err != nil {
        log.Fatalf("Getting interface %s: %s", ifname, err)
    }

    // Attach count_packets to the network interface.
    link, err := link.AttachXDP(link.XDPOptions{
        Program:   objs.CountPackets,
        Interface: iface.Index,
    })
    if err != nil {
        log.Fatal("Attaching XDP:", err)
    }
    defer link.Close()

    log.Printf("Counting incoming packets on %s..", ifname)

    // Periodically fetch the packet counter from PktCount,
    // exit the program when interrupted.
    tick := time.Tick(time.Second)
    stop := make(chan os.Signal, 5)
    signal.Notify(stop, os.Interrupt)
    for {
        select {
        case <-tick:
            var count uint64
            err := objs.PktCount.Lookup(uint32(0), &count)
            if err != nil {
                log.Fatal("Map lookup:", err)
            }
            log.Printf("Received %d packets", count)
        case <-stop:
            log.Print("Received signal, exiting..")
            return
        }
    }
}

As there’s already an example, let’s dig into the prominent sections:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
// Load the compiled eBPF ELF and load it into the kernel.
var objs counterObjects
if err := loadCounterObjects(&objs, nil); err != nil {
    log.Fatal("Loading eBPF objects:", err)
}
defer objs.Close()

ifname := "eth0" // Change this to an interface on your machine.
iface, err := net.InterfaceByName(ifname)
if err != nil {
    log.Fatalf("Getting interface %s: %s", ifname, err)
}

// Attach count_packets to the network interface.
link, err := link.AttachXDP(link.XDPOptions{
    Program:   objs.CountPackets,
    Interface: iface.Index,
})
if err != nil {
    log.Fatal("Attaching XDP:", err)
}
defer link.Close()

counterObjects : This is a struct type generated by running bpf2go, representing our compiled eBPF ELF.

loadCounterObjects() : Attempts to load the eBPF object, and captures an error if it cannot do so.

defer objs.Close() : Ensure proper cleanup of any resources associated with the loaded eBPF objects on exit. This is a common practice to prevent resource leaks.

link.AttachXDP: This function call is used to attach an XDP program to a specific network device. The Program being our C-based eBPF Program we defined as CountPackets:

1
2
3
4
// From counter.c

SEC("xdp")
int count_packets() {

Finally, we need a way of fetching data from the eBPF map storing our Packet counter:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
// Periodically fetch the packet counter from PktCount,
  // exit the program when interrupted.
  tick := time.Tick(time.Second)
  stop := make(chan os.Signal, 5)
  signal.Notify(stop, os.Interrupt)
  for {
      select {
      case <-tick:
          var count uint64
          err := objs.PktCount.Lookup(uint32(0), &count)
          if err != nil {
              log.Fatal("Map lookup:", err)
          }
          log.Printf("Received %d packets", count)
      case <-stop:
          log.Print("Received signal, exiting..")
          return
      }
  }

Here, we leverage two channels, one that will loop indefinitely, printing out the value in the first index of the map, (the packet counter) and a second channel that will quit the application in the event of a termination signal from the Operating System.
