My Nested NSX Home Lab

With the ever growing popularity of SDDC solutions I’ve decided to invest some time in learning VMware NSX and sit the VCP6-NV Exam. For this I’ve re-purposed my existing homelab and configured it for NSX. I have a fairly simple setup consisting of a single whitebox “server” that will accommodate nested ESXi hypervisors and a HP Microserver acting as a iSCSI target.

Whitebox specs:

Motherboard: MSI B85M-E45 Socket 1150

CPU: Intel Core i7 4785T 35W TDP

RAM: 32GB Corsair DDR3 Vengeance

PSU: 300W be quiet! 80plus bronze

Case: Thermaltake Core v21 Micro ATX

Switch: 8 Port Netgear GS 108-T Smart Switch

Cooler: Akasa AK-CC7108EP01

NAS/SAN: HP Microserver N54L , 12GB Ram, 480GB SSD, 500GB mechanical.



ESXi is installed on the physical host with additional ESXi VM’s being created so I can play around with DRS/HA features too. The end result looks like this:

NSXLAB

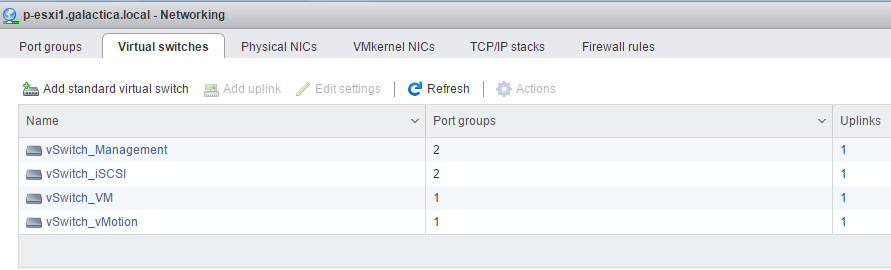

From a networking perspective I have separate port groups on my physical host for Management, VM, iSCSI, vMotion etc. My nested ESXi hosts have vNIC’s in these port groups. Due to the nature of nesting ESXi hosts for this to work promiscuous mode has to be enabled on the port groups on the phyiscal host for this to work (management doubles as VXLAN Transport)

vSwitch



The actual installation of NSX is already well covered but this  covers the basics for what I needed to do.

5 Comments

  1. Harold

    But 2 posts ago you said you already passed the test?

    • David

      I did, but I forgot to change that post from draft to publish hence the incorrect ordering.

  2. Chris

    Mate, I am looking at setting up a lab like this. Are you able to guide on what I need to do?

    • David

      Sure, what are you working with resource wise?

  3. KDahbour

    Hi there,
    how many physical NIC card you have in your Host?
    can you share the physical topology??
